Equipment

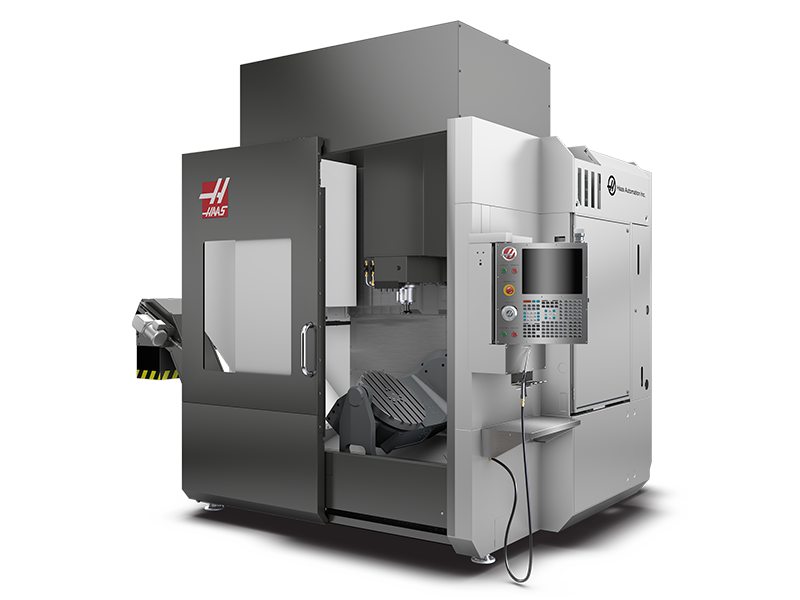

HAAS UMC-750SS

5-axis 30" X 20" X 20" 500 mm dual-axis trunnion rotary table 30-50 tool capacity 30HP, 12,000 RPM 40 Taper

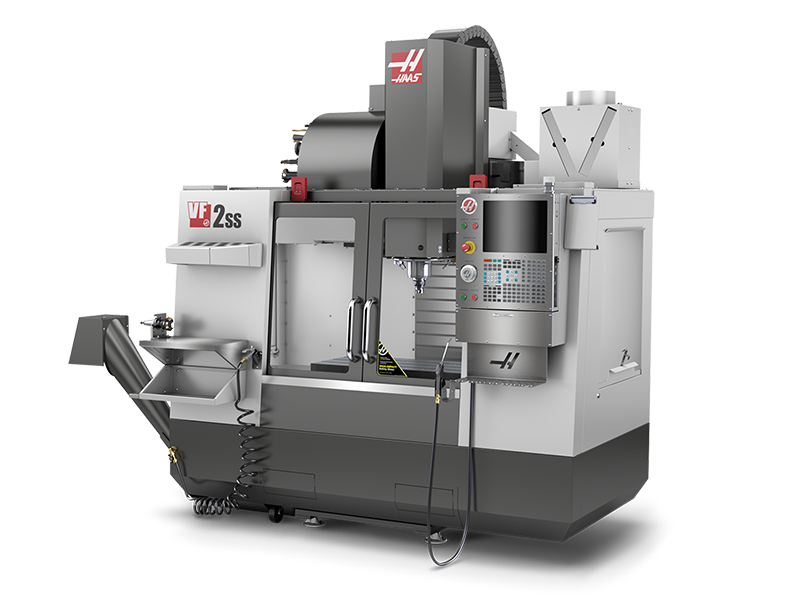

HAAS VF-2SS

XYZ Travel 30" X 16" X 20"
30+1 tool capacity
30HP, 12,000 RPM
40 Taper

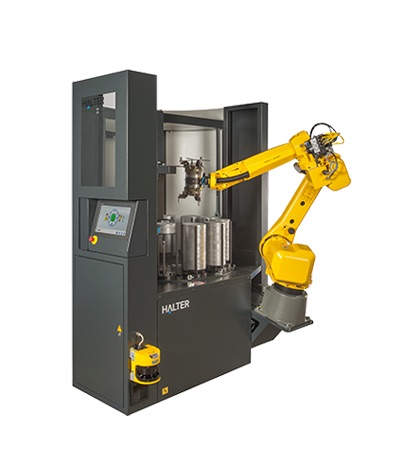

Halter Turnstacker Premium 20

Fanuc 6-axis robot arm
Workpiece turn-around station for 2-sided machining
Continuous operation with automatic door

3 x HAAS VMC VF-5/50’s

XYZ Travel 50" X 26" X 25"
30 tool capacity
30HP, 7,500 RPM
50 Taper

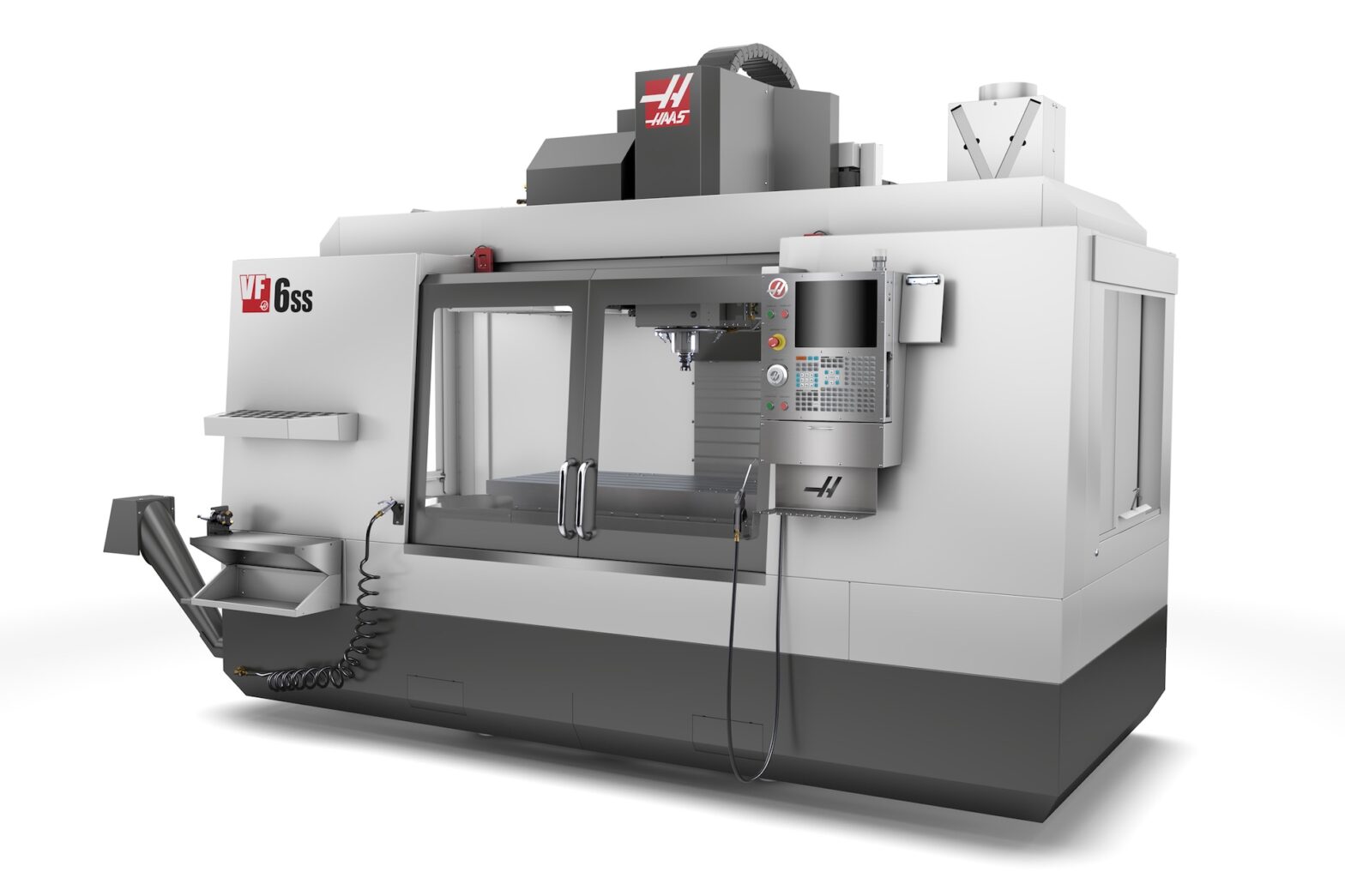

HAAS VMC VF-6SS

64" X 28" table
XYZ Travel 64" X 32" X 30"
40 tool capacity
30HP, 12,000RPM, 4 Axis

HAAS ST-30Y Lathe with Live Tooling

18" x 23" (457 x 584 mm) max capacity 3.0" (76 mm) bar 31.75" (806 mm) swing 10" (254 mm) chuck 30 hp (22.4 kW) vector drive, 3400 rpm

Quantity on Doosan 2699SY raises to 3 from 2 previously

14.8" x 29.9" (376 x 760 mm) max capacity 3.2" (81 mm) bar 30.7" (680 mm) swing 10" (254 mm)chuck 14.8" Max Turn Diameter 29.9" Max Turn Length Main Spindle 30 hp (22.4 kW), 4800 rpm Sub Spindle 20 hp (15 kW), 6000 rpm

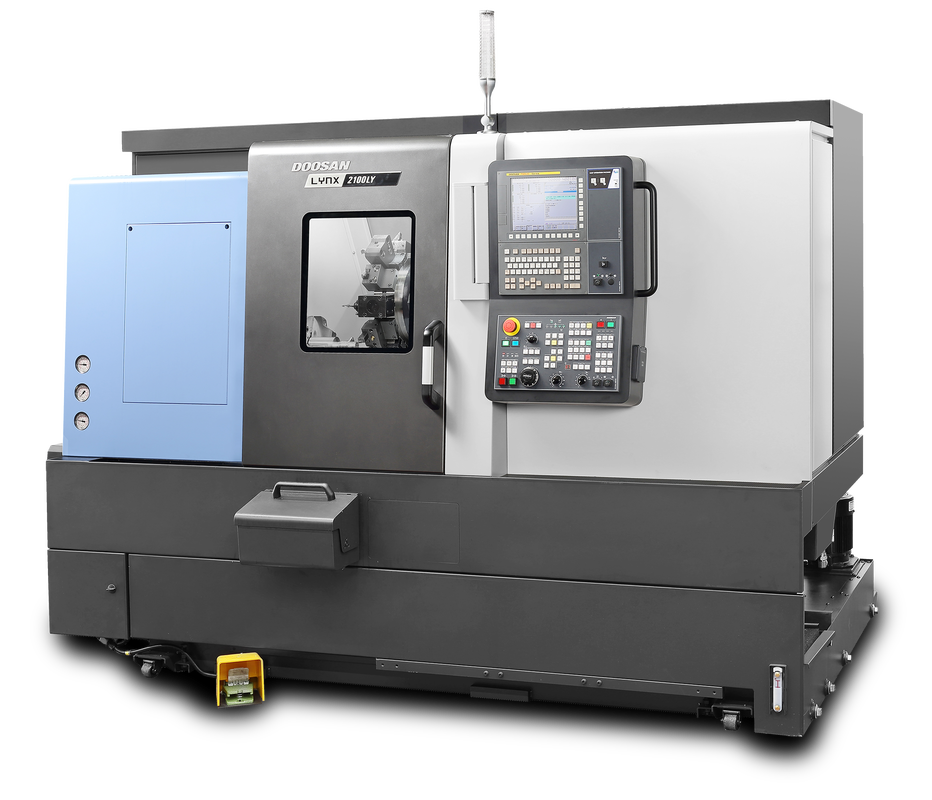

DOOSAN LYNX 2100LSYB with live tooling and Sub-spindle

11.8" x 20.0" (300 x 510 mm) max capacity 2.6" (67 mm) bar 23.6" (600 mm) swing 10" (254 mm) chuck 11.8" Max Turn Diameter 20.0" Max Turn Length Main Spindle 20 hp (15 kW), 4500 rpm Sub Spindle 7.3 hp (5.5 kW), 6000 rpm

2 x Omax Waterjet 55100 Cutting envelope 55″ X 100″

BROWN & SHARPE CMM

XYZ Measuring Capability 27.6" X 39.4" X 26" FB2 Control System PC-DMIS CAD Software

Do-All C-916A Automatic Band Saw

Cuts rectangular bar 9” high x 16” wide Cuts 10.75” round stock Vise bed capacity 1800 pounds Cut counter, auto feed, adjustable blade speeds Job selector for blade choice and pitch

Omax Waterjet 80160 Cutting envelope 80″ X 160″

Quantity on Lynx Raises to 2, from 1 previously

11.8" x 20.0" (300 x 510 mm) max capacity 2.6" (67 mm) bar 23.6" (600 mm) swing 10" (254 mm) chuck 11.8" Max Turn Diameter 20.0" Max Turn Length Main Spindle 20 hp (15 kW), 4500 rpm Sub Spindle 7.3 hp (5.5 kW), 6000 rpm
